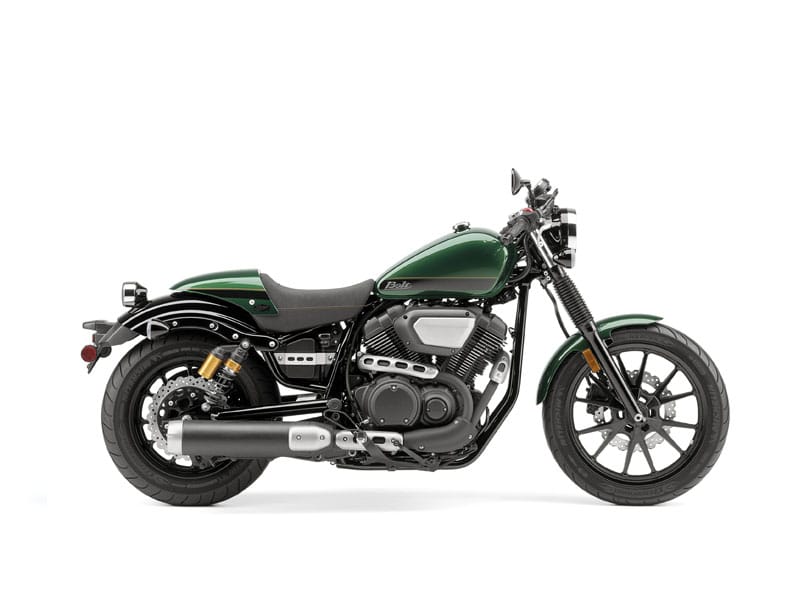

Bolt C-Spec
Yamaha Bolt C-Spec for Sale at Frankston Yamaha in Carrum Downs, VIC | Specifications and Review Information
Epitomising the cool café style that has been popular across the globe since the 1960s, the Bolt C-Spec features retro styling with original Star V-twin performance. Riders will be transported to the roots of motorcycling as they re-discover the joy of riding a unique looking custom bike with the pulse and feeling that only an air-cooled V-twin can provide.
Unique Bolt C-Spec features include clip-on handlebars, traditional fork gaiters, sport café paint and graphics to tie it all together. In addition, the footpegs have been moved rearwards to offer a more aggressive riding position. Piggyback 'R-Spec' shocks are fitted as standard for a plush ride.
942CC V-TWIN
The 60° V-twin 942cc air-cooled engine, along with a pent-roof shaped combustion chamber and 9.0:1 compression ratio produces excellent power and superior low-end torque.
COMFORTABLE PLUSH RIDE
The beefy front 41mm fork tubes offer excellent suspension performance and the twin piggyback style rear shocks, have been tuned to provide great comfort and handling while contributing to the machine's low profile.
MODERN APPEAL
Up front, a round, smoked-lens LCD digital speedometer adds a modern look while the rear sports a LED tail light adding to the traditional bobber styling.
WAVE ROTORS
The 298mm front disc brake and 298mm rear disc brake both use wave rotors, the style usually found on sport bikes. The front brake uses a floating-mount for great heat-distortion resistance, contributing to excellent braking performance.
CAFÉ STYING
Bolt C-Spec features include clip-on handlebars, traditional fork gaiters, sport café paint and graphics to tie it all together.
Technical Specifications
Engine
| Engine Type | Air-cooled, 4-stroke, SOHC, 4-valve, V-twin |
|---|---|
| Displacement (cc) | 942.0 |
| Bore x Stroke (mm) | 85.0 x 83.0 |
| Compression Ratio | 9.0 : 1 |
| Lubrication System | Wet Sump |
| Fuel Management | Fuel Injection |
| Ignition | TCI |
| Starter System | Electric |
| Fuel Tank Capacity (L) | 12.0 |
| Final Transmission | Belt |
| Transmission | Constant mesh 5-speed |
Chassis
| Frame Type | Double cradle |
|---|---|
| Suspension Front | Telescopic forks, 120mm travel |
| Suspension Rear | Swingarm, 70mm travel |
| Brakes Front | Hydraulic single disc, 298mm |
| Brakes Rear | Hydraulic single disc, 298mm |
| Tyres Front | 100/90 B19M/C (57H) Tubeless |
| Tyres Rear | 150/80 B16M/C (71H) Tubeless |
Dimensions
| Length (mm) | 2295 |
|---|---|
| Width (mm) | 775 |
| Height (mm) | 1160 |
| Seat Height (mm) | 765 |
| Wheelbase (mm) | 1570 |
| Ground Clearance (mm) | 135 |
| Wet Weight (kg) | 247 |
