YZ85LW

yamaha-yz85lw
Yamaha YZ85LW for Sale at Frankston Yamaha in Carrum Downs, VIC | Specifications and Review Information

Yamaha YZ85LW for Sale at Frankston Yamaha in Carrum Downs, VIC | Specifications and Review Information

Along with its proven liquid-cooled YPVS-equipped 85cc powerplant, fully adjustable suspension and large diameter brakes, the YZ85LW boasts numerous enhancements to expand its overall performance.

Rider ergonomics have been improved by way of a narrower tank design, flatter seat, side covers and slimmer, symmetrical radiator shrouds. This enables greater freedom of movement for smooth shifting of body weight and better machine control.

For demanding junior racers, the YZ85LW has been enhanced in several key chassis areas to optimise strength and rigidity, including revisions to the main frame, longer swingarm and rear wheel axle. The aluminium swingarm was redesigned to enhance balance between longitudinal and torsional rigidity for improved handling stability. A removable rear subframe constructed from lightweight, high-strength aluminium reduces weight. The rear brake master cylinder now has a built-in sub-reservoir providing more linear brake response and increased control.

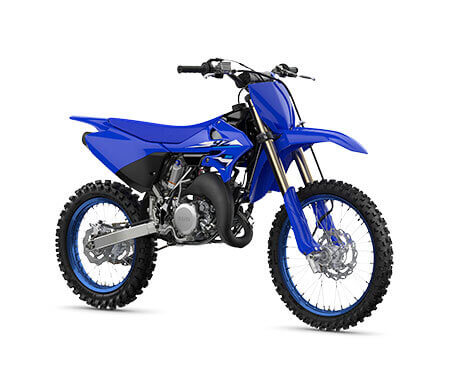

Yamaha YZ85LW

Yamaha YZ85 LW Team Yamaha Blue

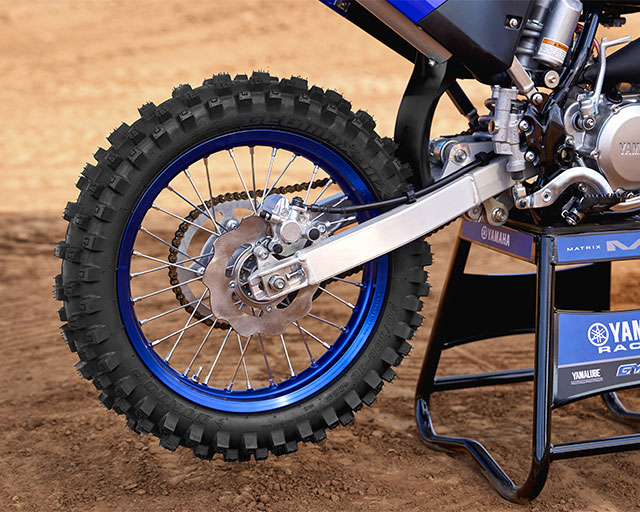

WAVE-STYLE BRAKE DISCS

WAVE-STYLE BRAKE DISCS

Big wave-style brake discs offer improved self-cleaning and cooler-running performance. The 220mm front disc and 190mm rear disc deliver strong, precise stopping power. Rear brake master cylinder also includes built-in sub-reservoir to provide more linear brake response and increased control.

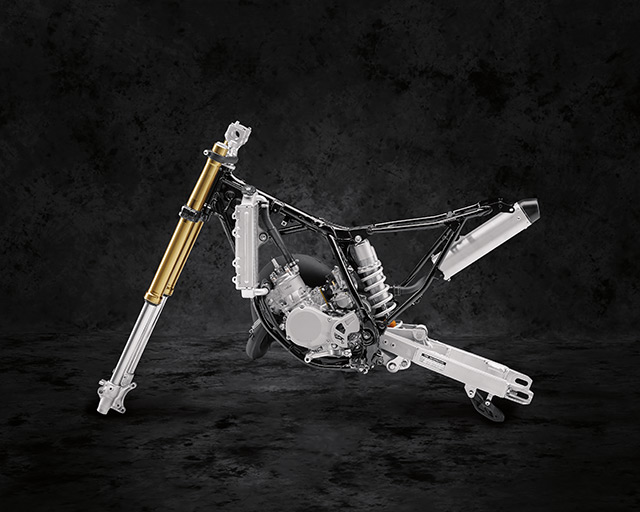

LIGHTWEIGHT ALUMINIUM CHASSIS DESIGN

LIGHTWEIGHT ALUMINIUM CHASSIS DESIGN

Built for demanding junior racers, the YZ85LW's chassis is optimised for strength, rigidity and overall handling stability. The aluminium swingarm offers refined balance between longitudinal and torsional rigidity, and the removable rear subframe constructed from lightweight, high-strength aluminium reduces weight.

FULLY ADJUSTABLE FRONT FORKS

FULLY ADJUSTABLE FRONT FORKS

The lightweight 36mm KYB ® inverted cartridge fork features 275mm of travel with compression and rebound damping adjustability. Complete with low-friction outer tubes and internals, the damping settings offer enhanced performance across a range of conditions and rider abilities.

YPVS 2-STROKE ENGINE

YPVS 2-STROKE ENGINE

The 85cc liquid cooled engine features the Yamaha Power Valve System (YPVS) that boosts overall performance and contributes towards the bike's easy to use torque. Running with a high compression ratio - and equipped with a close ratio 6-speed transmission - the YZ85 delivers outstanding acceleration with race winning power.

IMPROVED AIR INTAKE

IMPROVED AIR INTAKE

The air intake system has been redesigned and features new side panels with large rear facing vents for a straighter airflow into the engine's airbox, which, increases the intake efficiency for improved engine performance.

ADJUSTABLE RIDER ERGONOMICS

ADJUSTABLE RIDER ERGONOMICS

The four-position adjustable handlebar mounts and taper-style handlebar allow the rider to tune the handlebar position to suit their size and preferences. Flat seat and narrow fuel tank design, along with smoothly integrated body panels and slim shroud width, combine to enable greater freedom of movement for increased control and confidence.

Technical Specifications



Engine



Engine Type Liquid-cooled, 2-stroke with YPVS
Displacement (cc) 85.0
Bore x Stroke (mm) 47.5 x 47.8
Compression Ratio 8.1-9.6 : 1
Lubrication System Premix
Fuel Management PWK28
Ignition CDI
Starter System Kick
Fuel Tank Capacity (L) 5.0
Final Transmission Chain
Transmission Constant mesh 6-speed



Chassis



Frame Type Semi double cradle
Suspension Front Telescopic forks, 275mm travel
Suspension Rear Swingarm (link suspension), 287mm travel
Brakes Front Hydraulic single disc, 220mm
Brakes Rear Hydraulic single disc, 190mm
Tyres Front 70/100-19 Dunlop Geomax MX3SF
Tyres Rear 90/100-16 Dunlop Geomax MX3S



Dimensions



Length (mm) 1895
Width (mm) 760
Height (mm) 1175
Seat Height (mm) 885
Wheelbase (mm) 1285
Ground Clearance (mm) 360
Wet Weight (kg) 75
